• Pickup box, Fleetside
• Air cleaner, high-capacity
• Rear wheel drive
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 125 amps
• Frame, fully boxed, hydroformed front section
• Recovery hooks, front, frame-mounted
• Suspension, front independent, torsion bar with increased front GAWR
• Suspension, rear 4+1+2 multi-leaf springs for single rear wheel and 3+1+2 multi-leaf springs for dual rear wheel
• Steering, power, recirculating ball
• Brakes, 4-wheel antilock, 4-wheel disc with dual rear wheels
• Exhaust, aluminized stainless-steel muffler and tailpipe

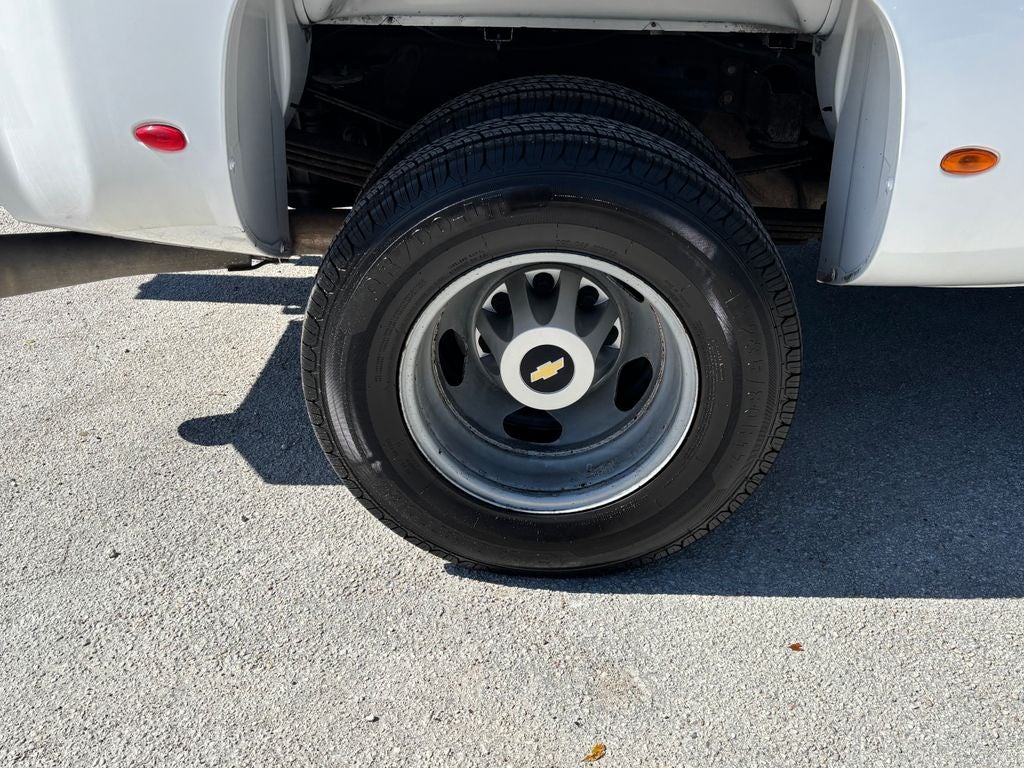

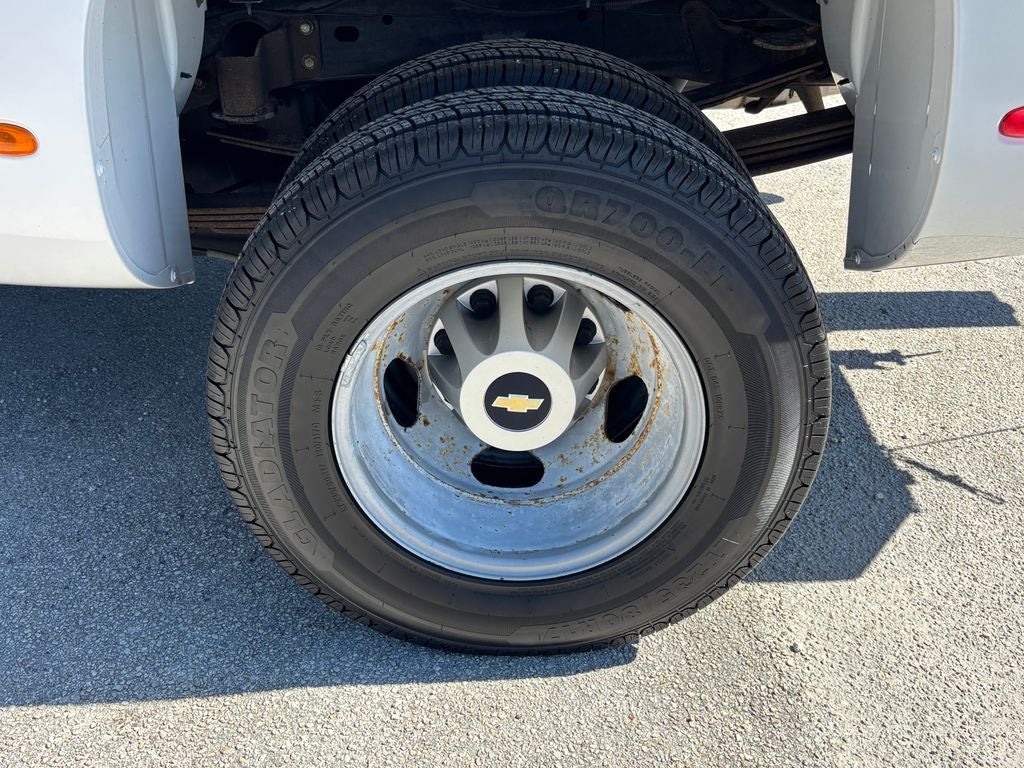

• Wheels, 17" (43.2 cm) painted steel includes painted center caps and a steel spare (spare wheel will not cosmetically match the other 6 wheels) Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (Requires (9F6) 12,800 lbs. GVWR or (C7J) 13,000 lbs. GVWR (dual rear wheel).)
• Tires, LT235/80R17E all-season highway, blackwall (Requires (9F6) 12,800 lbs. GVWR or (C7J) 13,000 lbs. GVWR (dual rear wheel). Includes 7 tires with (E63) Fleetside pickup box. Includes 6 tires with (ZW9) pickup box delete.)
• Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered)
• Bumper, front chrome
• Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete)
• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Lamps, Smoked Amber roof marker (Standard on (9F6) 12,800 lbs. GVWR or (C7J) 13,000 lbs. GVWR (dual rear wheel) only. With single rear wheel GVWR not available with (YF5) California state emissions requirements.)
• Mirrors, outside manual, Black, manual-folding
• Glass, Solar-Ray light-tinted, all windows

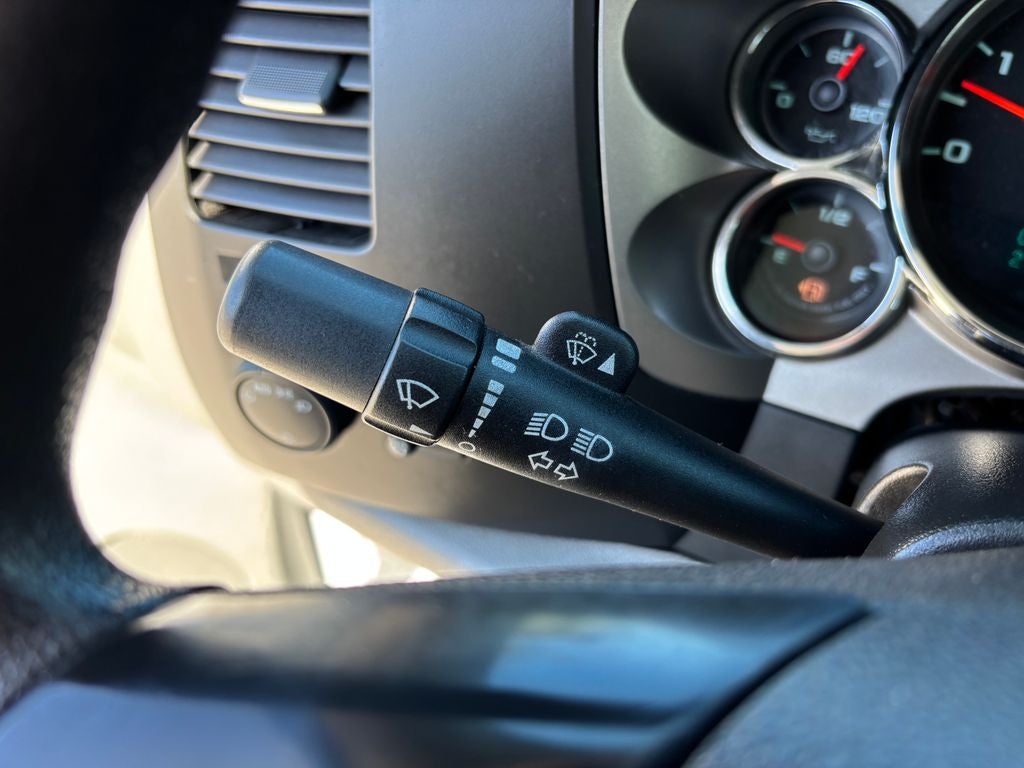

• Wipers, front intermittent wet-arm with pulse washers
• Door handles, Black

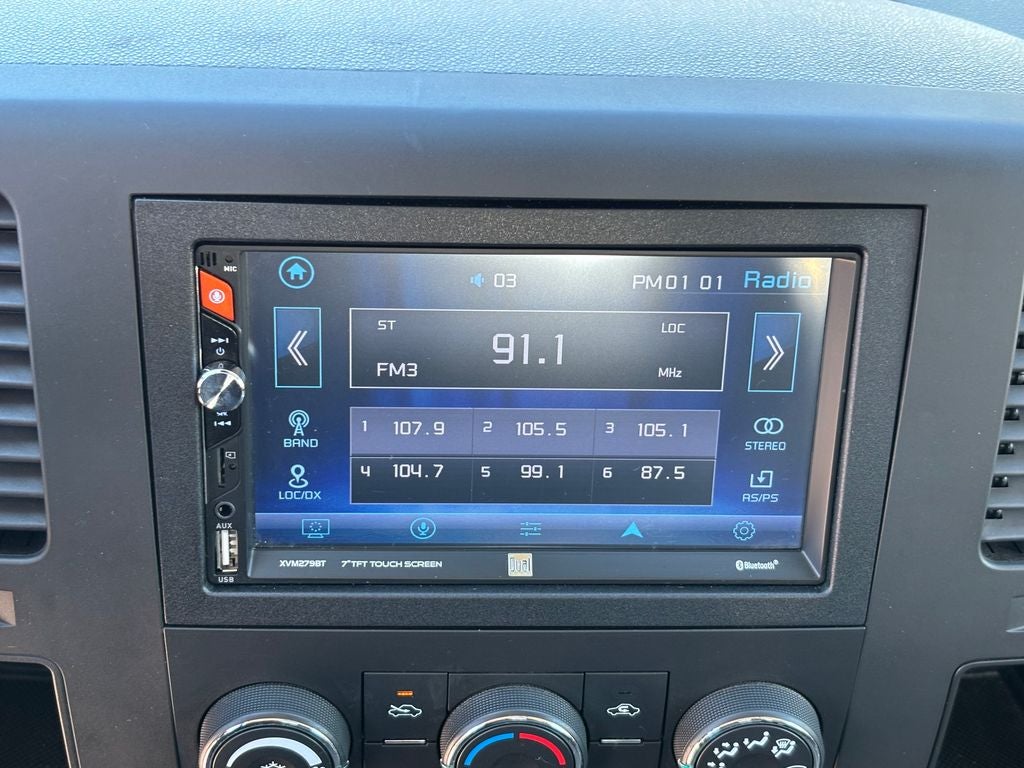

• Audio system, AM/FM stereo with seek-and-scan and digital clock (Not available with (U2K) XM Radio)
• XM Radio, delete
• Audio system feature, speaker system (Included with (5B5) power windows, doors and locks, SEO. Includes 4 speakers on Regular Cab models and 6 speakers on Extended and Crew Cab models.)

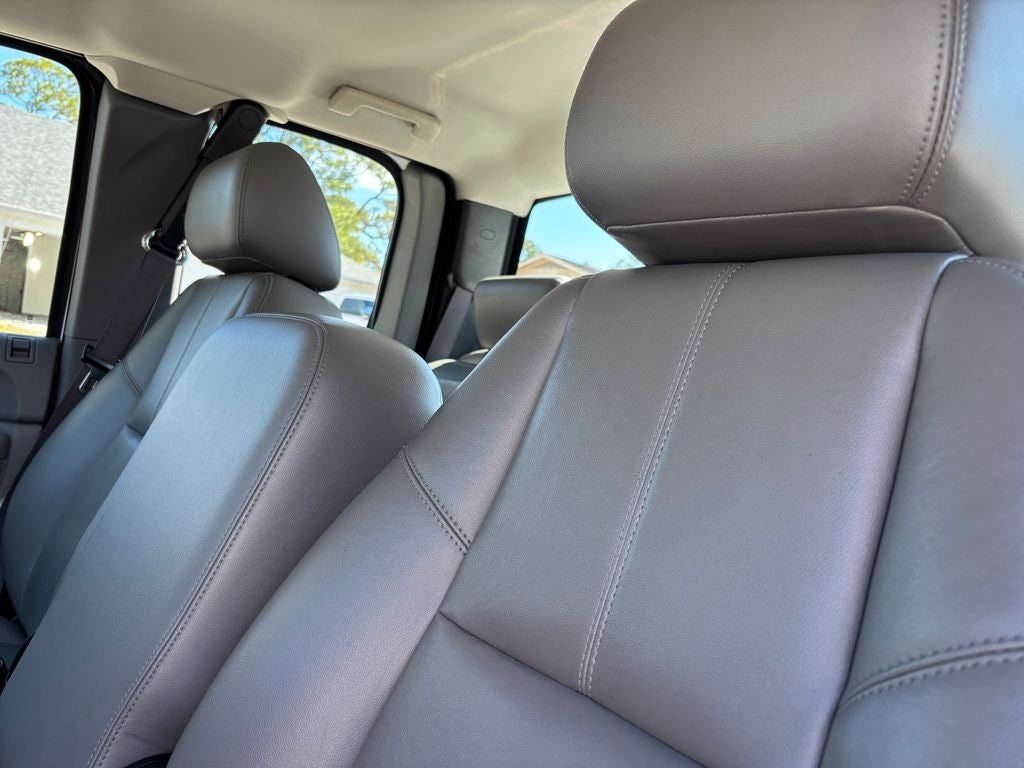

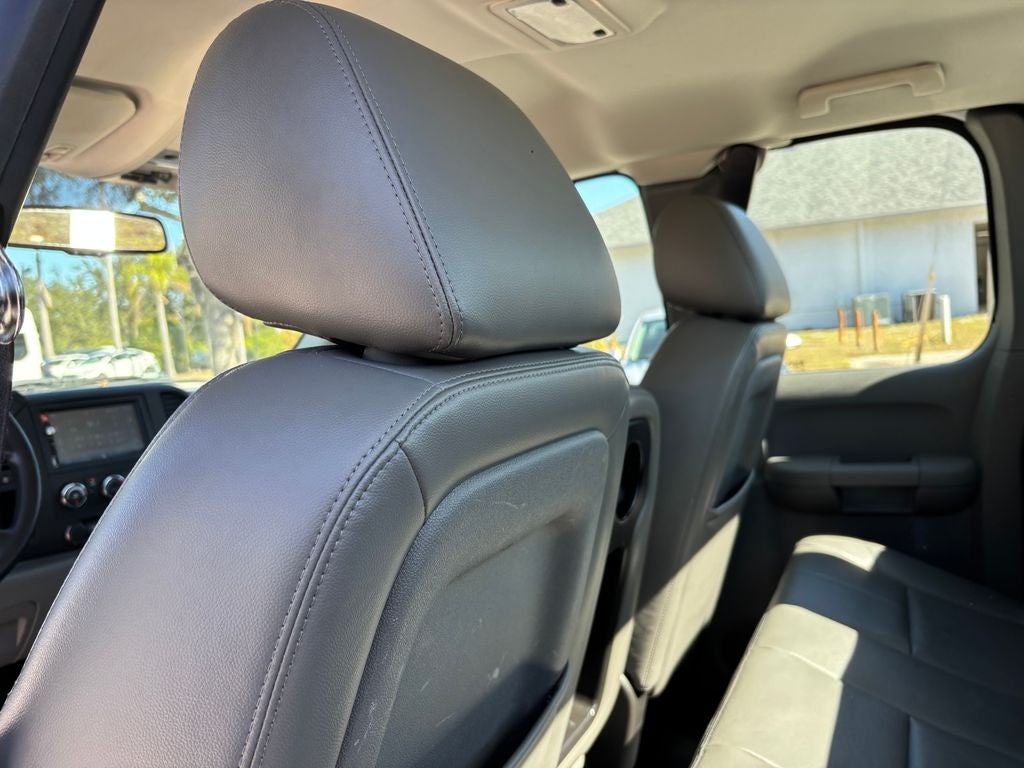

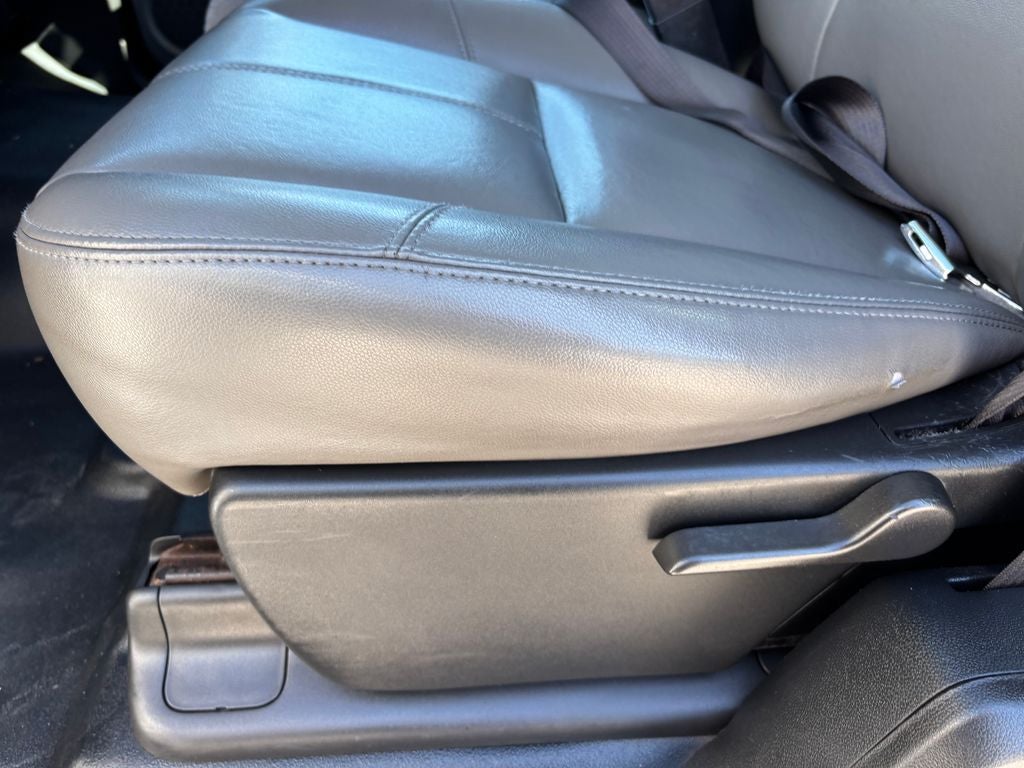

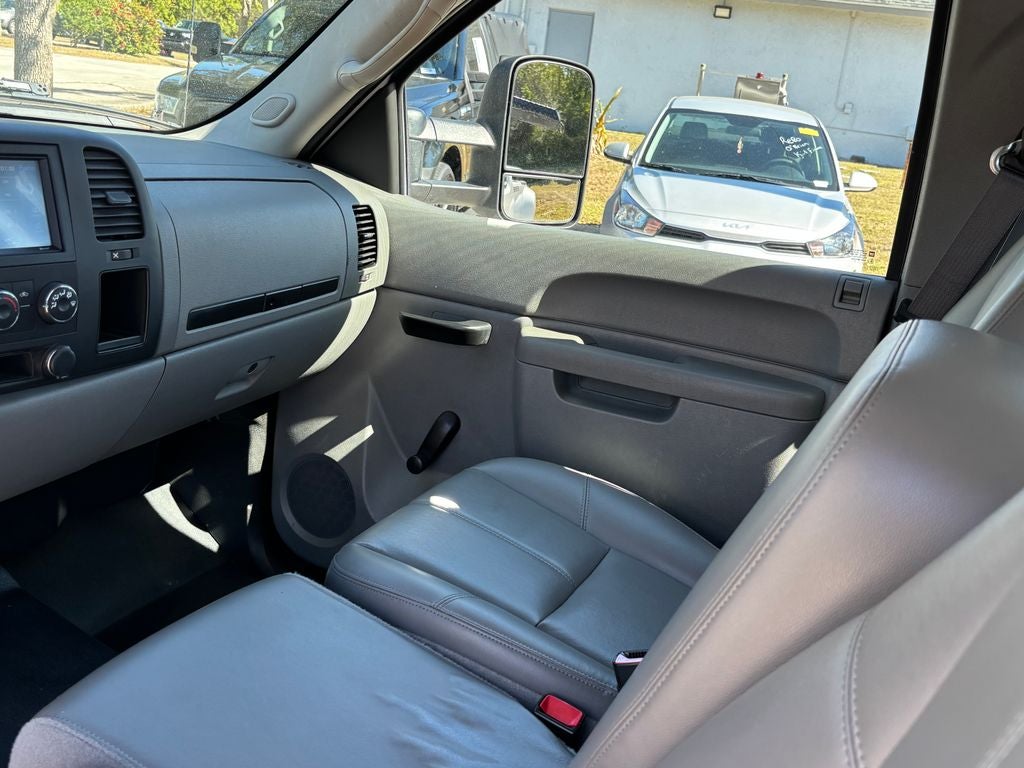

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• Seat trim, Vinyl

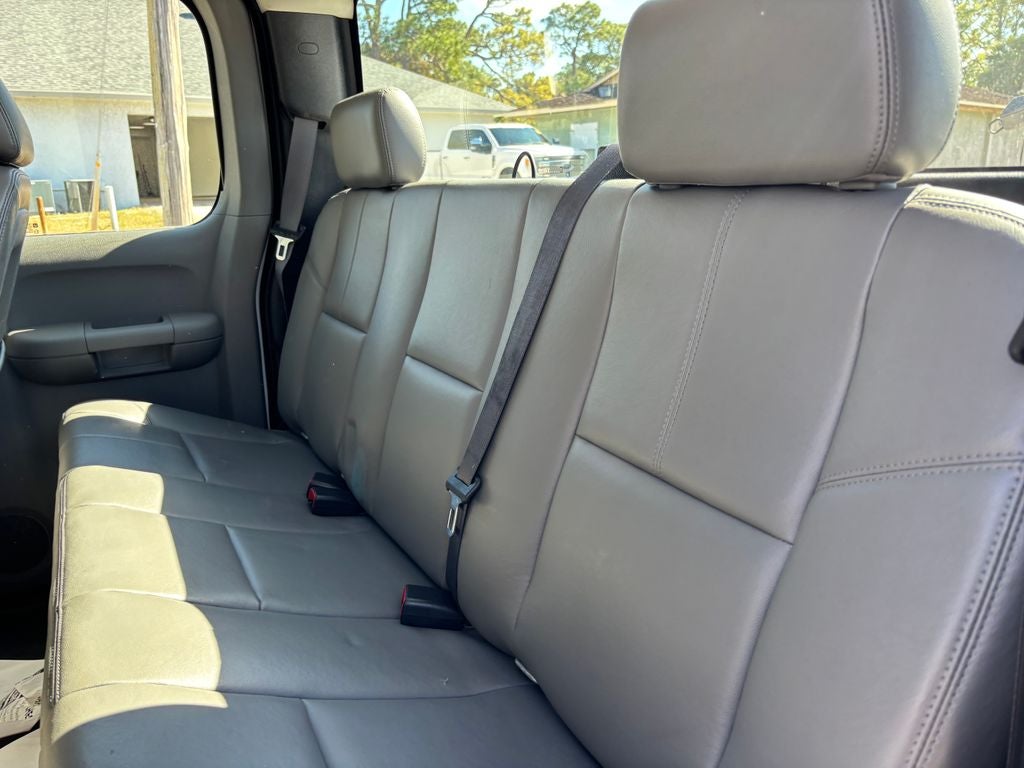

• Seat, rear bench (folds up), full width, folding, 3-passenger (includes child seat top tether anchor) (Standard with Extended Cab models only)
• Floor covering, Black rubberized vinyl

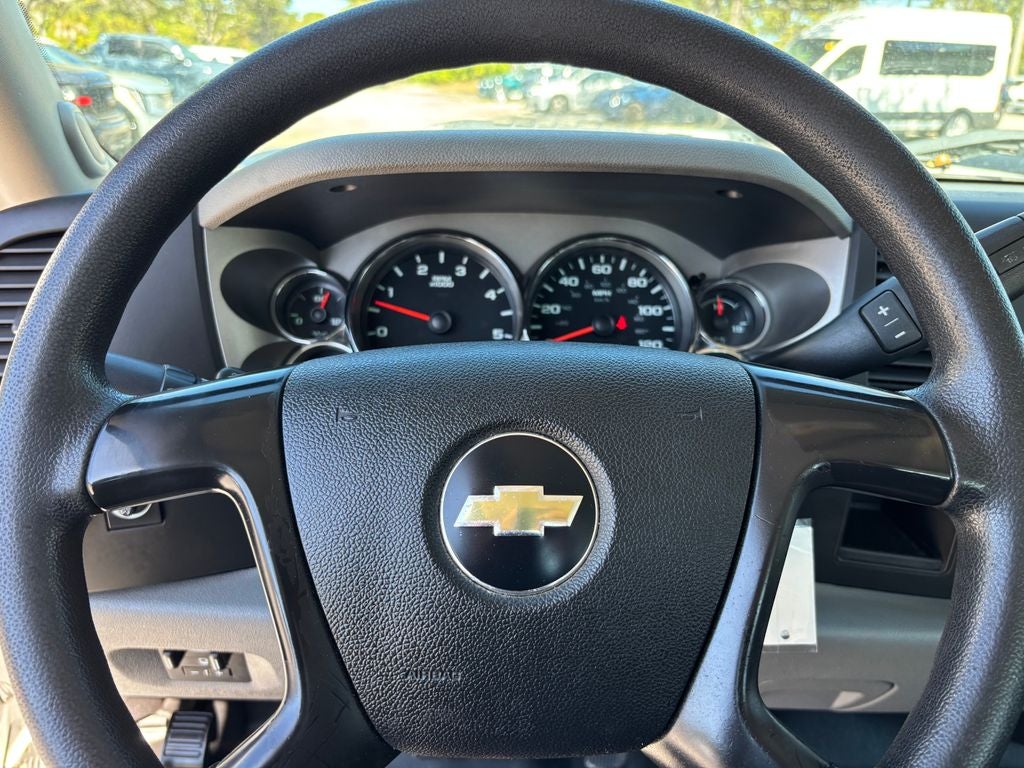

• Steering wheel includes theft-deterrent locking feature
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, fixed, rear access door (Standard with Extended Cab models only)

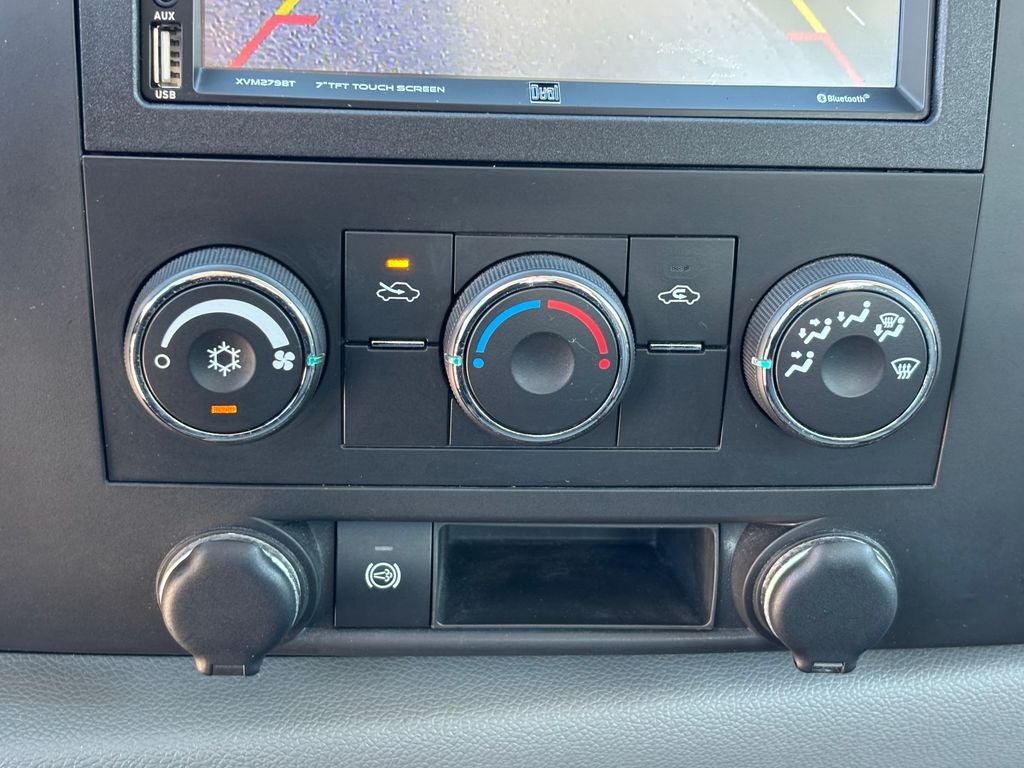

• Air conditioning, single-zone manual front climate control
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger, sliding with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)

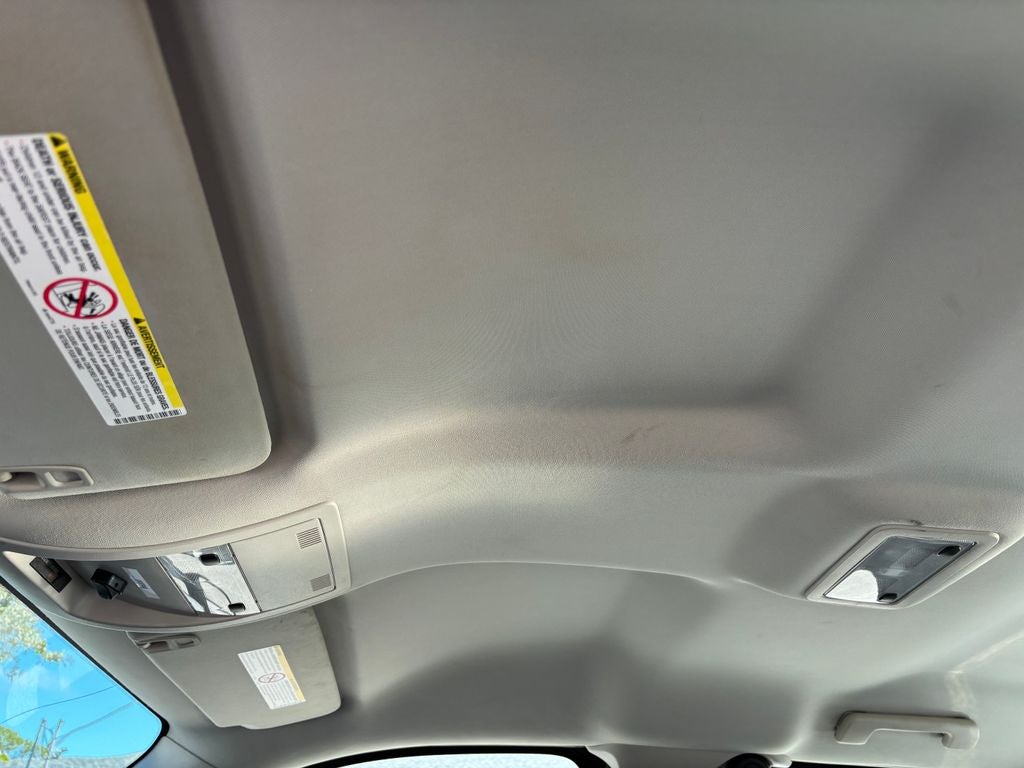

• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• OnStar, delete

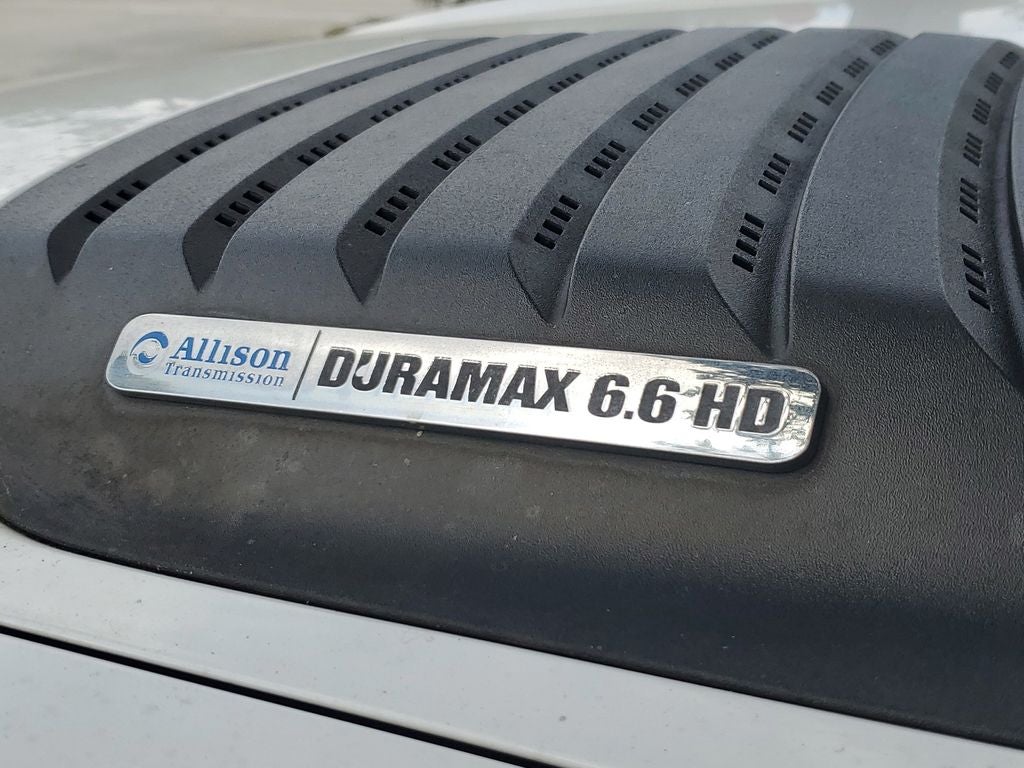

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm)

• Heavy-Duty Handling/Trailering Suspension Package
• Preferred Equipment Group 1WT
• 6 Speaker Audio System
• 6 Speakers
• AM/FM radio
• AM/FM Stereo
• Air Conditioning
• Power steering
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Locking Tailgate
• Passenger cancellable airbag
• 730 CCA Heavy-Duty Dual Battery
• Delay-off headlights
• Fully automatic headlights
• EZ-Lift Tailgate
• Engine Block Heater
• Exhaust Brake
• Bumpers: chrome
• High-Visibility Camper-Style Black Outside Mirrors
• Rear step bumper

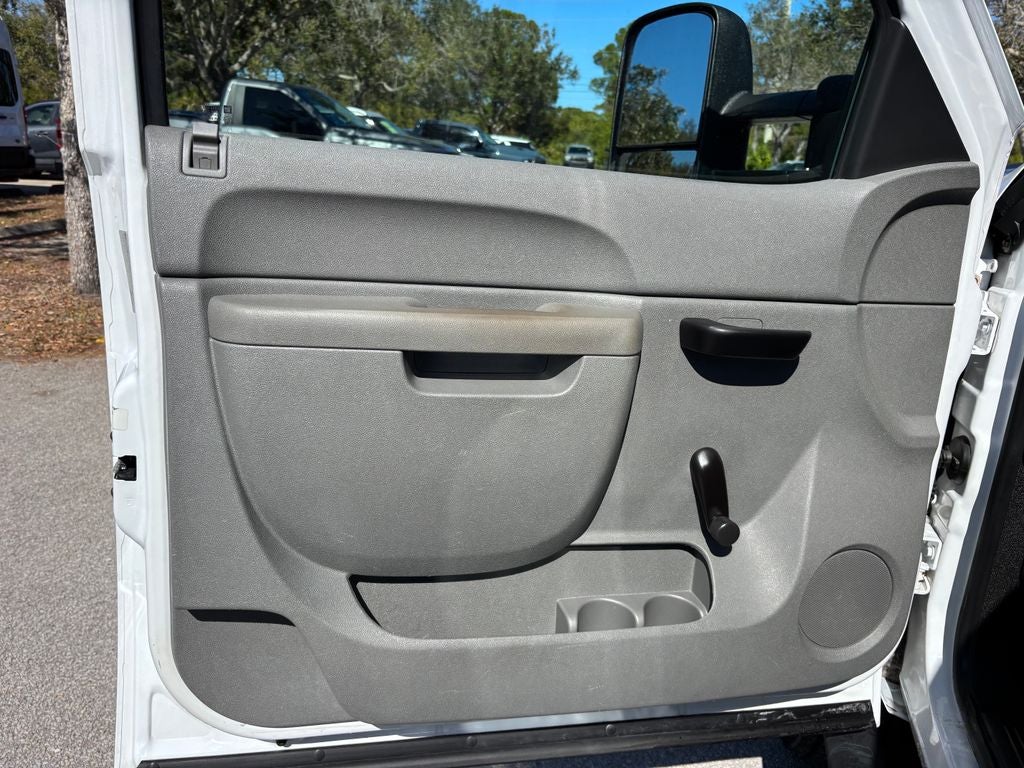

• Driver door bin
• Front reading lights

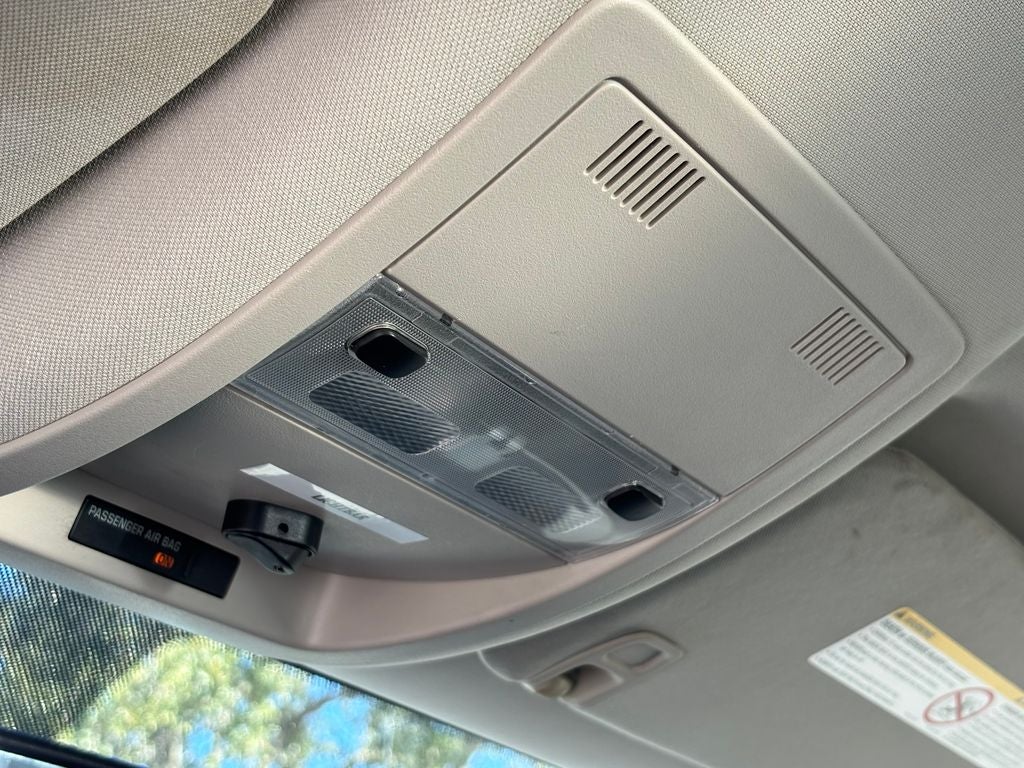

• Overhead console
• Passenger vanity mirror
• Rear reading lights

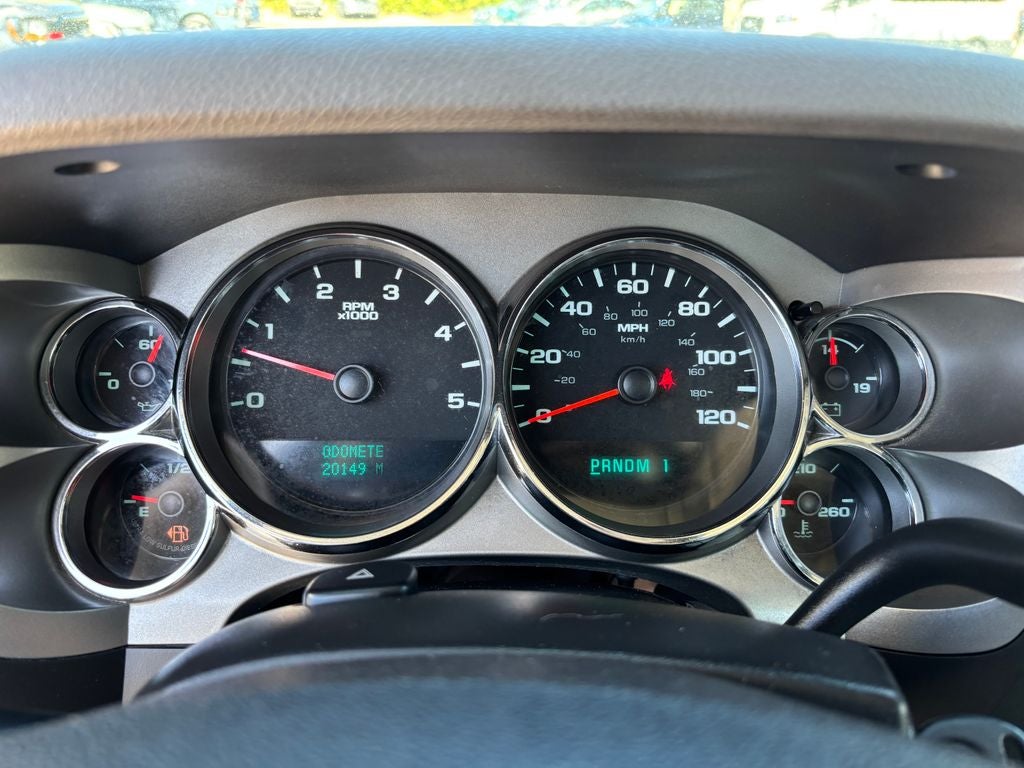

• Tachometer
• Tilt steering wheel
• Voltmeter

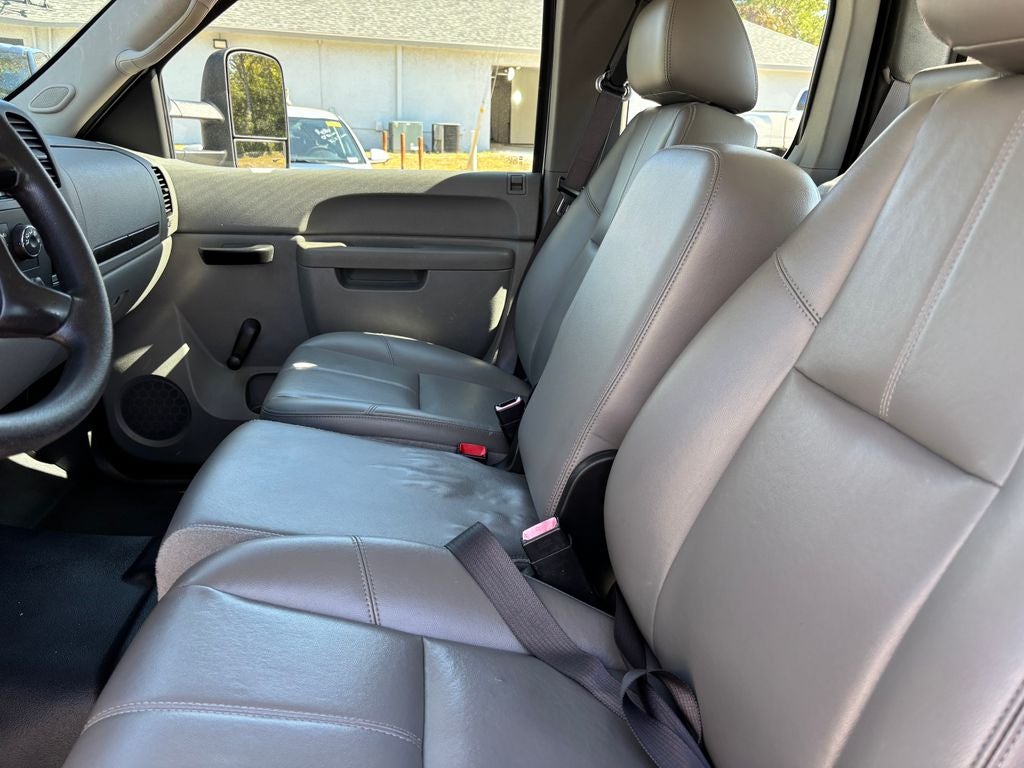

• 3-Passenger Front 40/20/40 Split-Bench Seat
• Vinyl Seat Trim
• Front Center Armrest w/Storage
• Passenger door bin
• Integrated Trailer Brake Controller
• Variably intermittent wipers
• 3.73 Rear Axle Ratio

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): 25.4
• Total Cooling System Capacity (qts): 16.4
• Weight Information

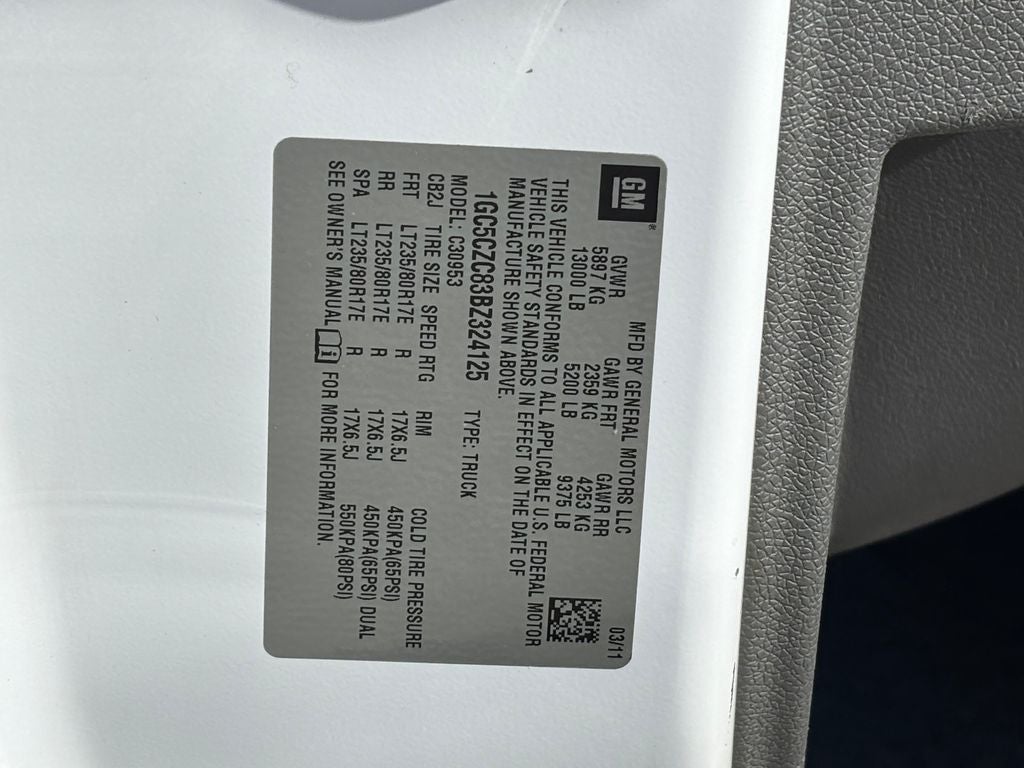

• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 9375
• Curb Weight - Front (lbs): 4203
• Curb Weight - Front (lbs): 3481
• Curb Weight - Rear (lbs): 3257
• Curb Weight - Rear (lbs): 3186
• Gross Vehicle Weight Rating Cap (lbs): 13000
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2475
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1365
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 21500
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5375
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2275
• Maximum Trailering Capacity (lbs): 21500
• Maximum Trailering Capacity (lbs): 13600
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 9375
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9375
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.32
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Tires
• Front Tire Order Code: QQO
• Rear Tire Order Code: QQO
• Front Tire Size: LT235/80R17E
• Rear Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): 2680
• Front Tire Capacity (lbs): 2515
• Rear Tire Capacity (lbs): 2470
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 52.8
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 158.2
• Length, Overall w/o rear bumper (in): 249.5
• Width, Max w/o mirrors (in): 95.9
• Height, Overall (in): 77.4
• Overhang, Front (in): 38.8
• Overhang, Rear w/o bumper (in): 52.6
• Front Bumper to Back of Cab (in): 141.4
• Cab to Axle (in): 56.0
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.7
• Ground Clearance, Rear (in): 8.7
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.5
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 75.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 60.3
• Second Head Room (in): 39.5
• Second Leg Room (in): 34.3
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 61.9
• Summary

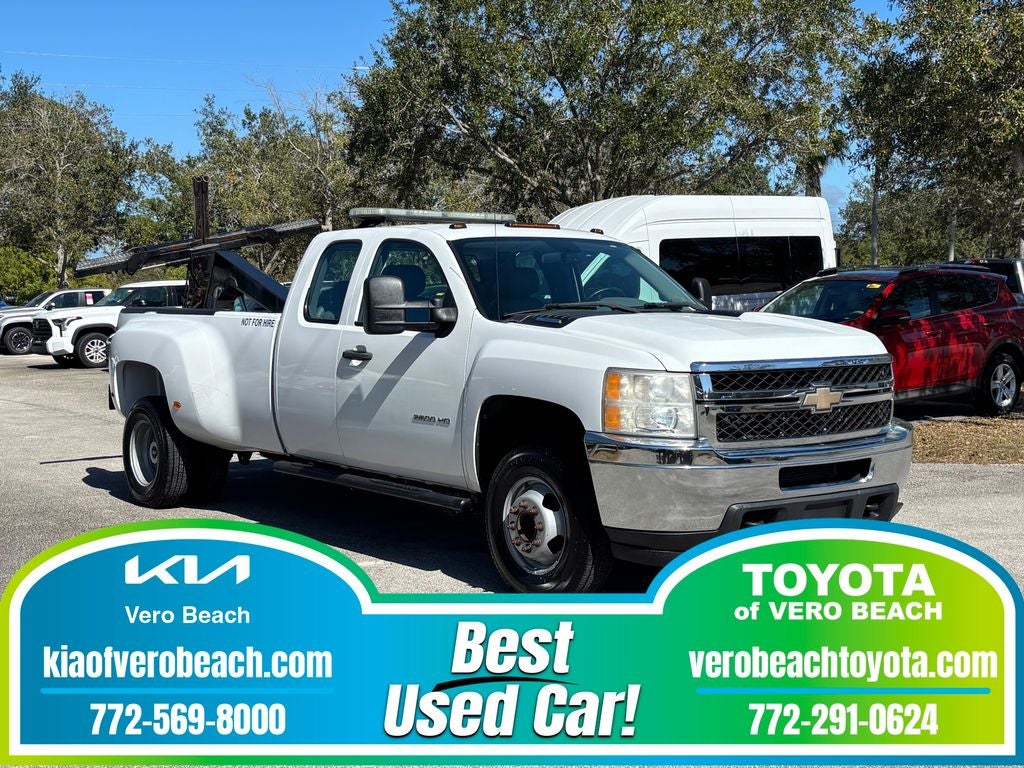

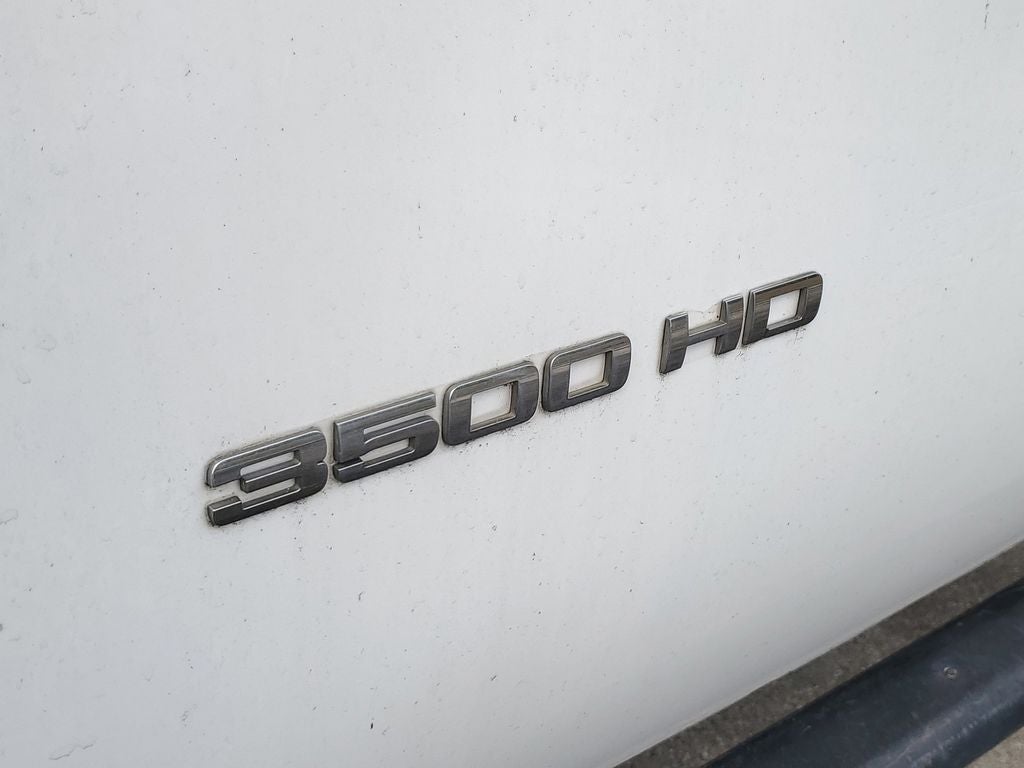

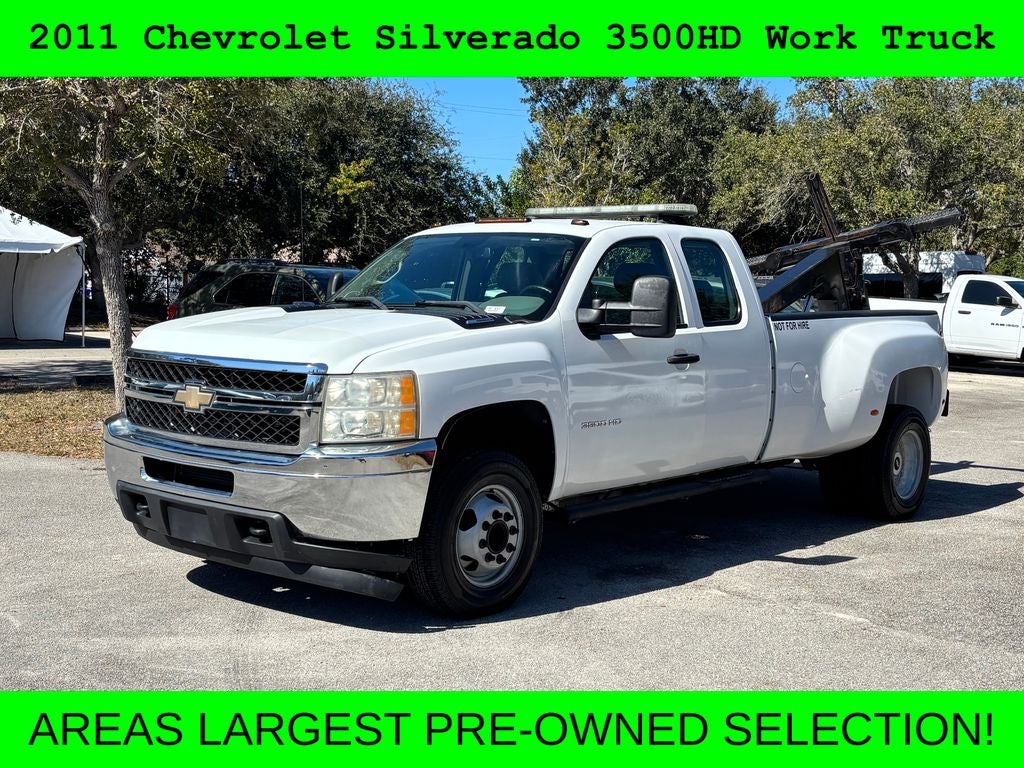

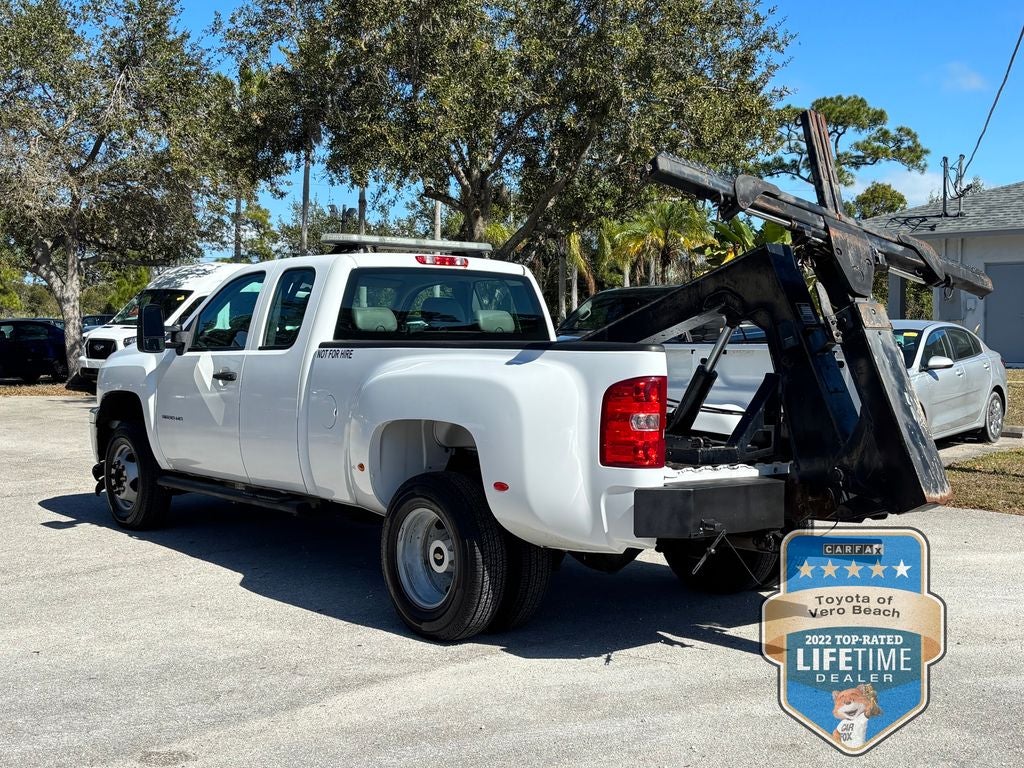

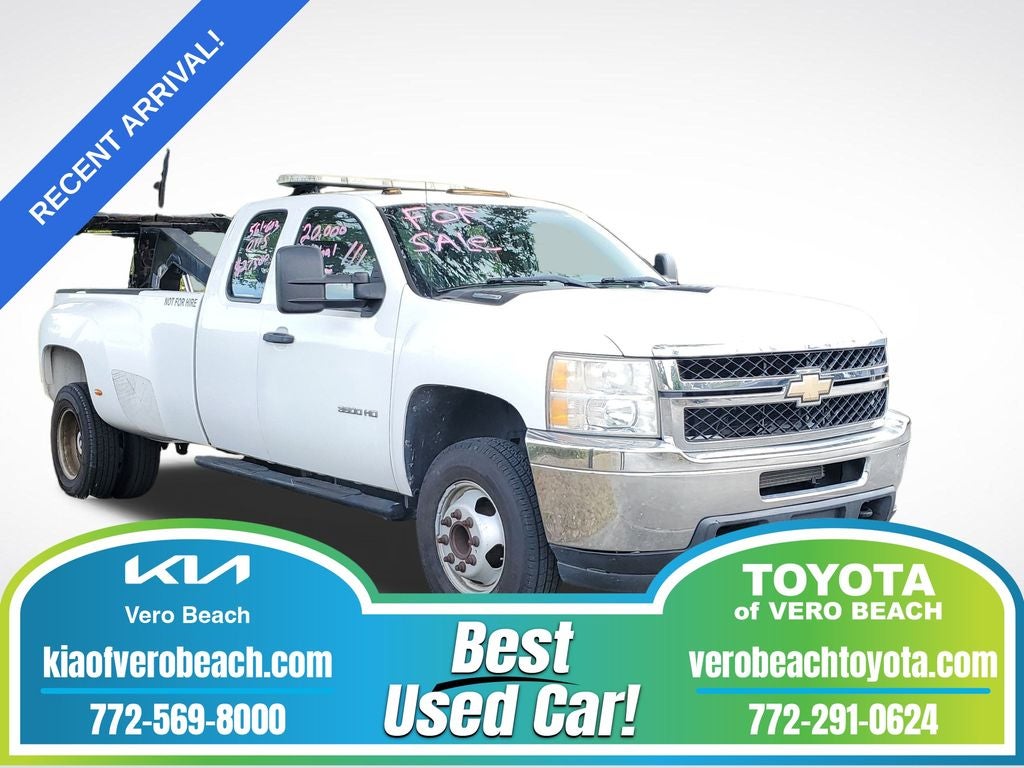

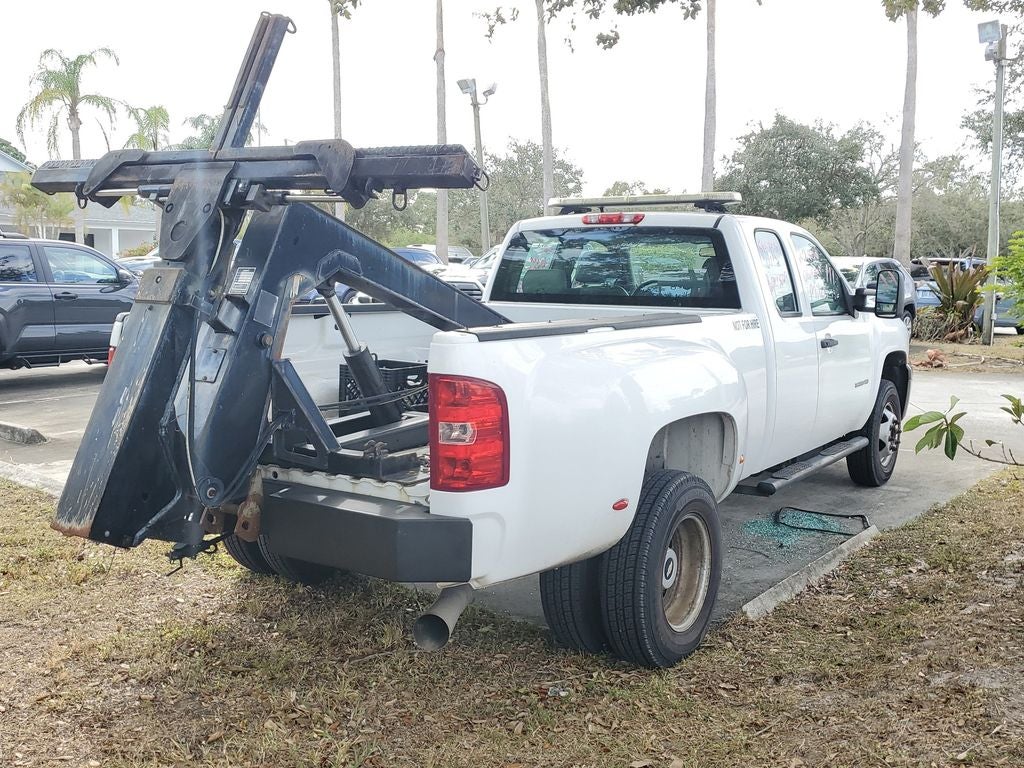

• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Ext Cab 8' Fleetside
• Body Code: E63
